Stripped Threads - Drain Plug - Repair

Post by Booga-dune-poon » Sat Jan 29, 2011 11:20 pm

Symptom: Leaking gear oil from drain plug.
Diagnosis: Stripped threads in aluminum engine case due to steel drain plug threads either over torqued or cross threading.
Treatment: Install Timesert steel thread insert.

Victim: 1996 Honda CR250 motorcycle

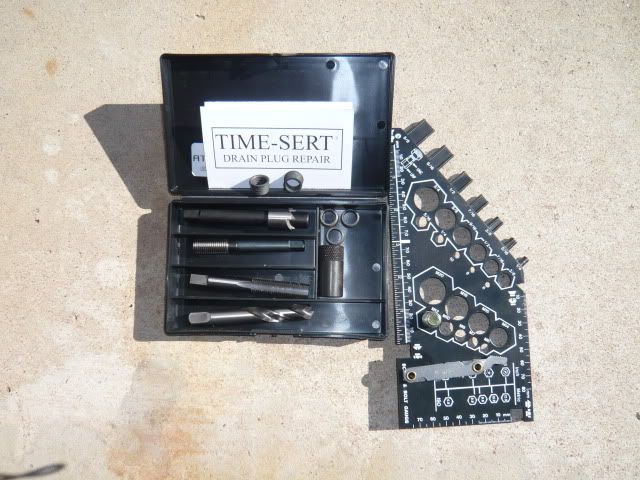

Special tools: Timesert drain plug repair kit

Common tools: 3/8" rachet, 7/16" 12 point socket to drive drill bit and tap

Repair Instructions:

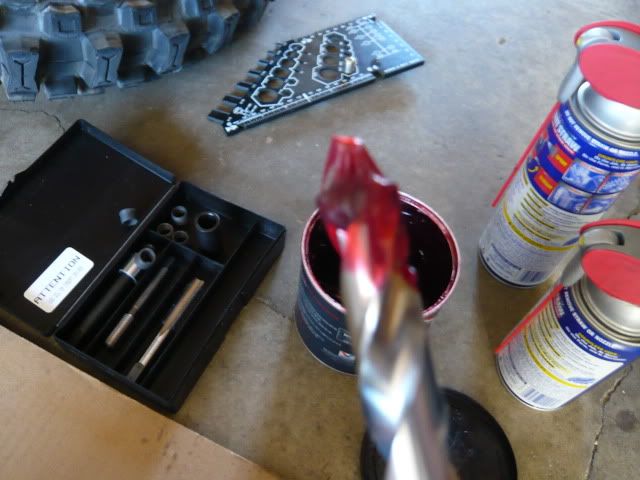

Step 1 - dip drill bit in grease to help capture chips during drilling operation

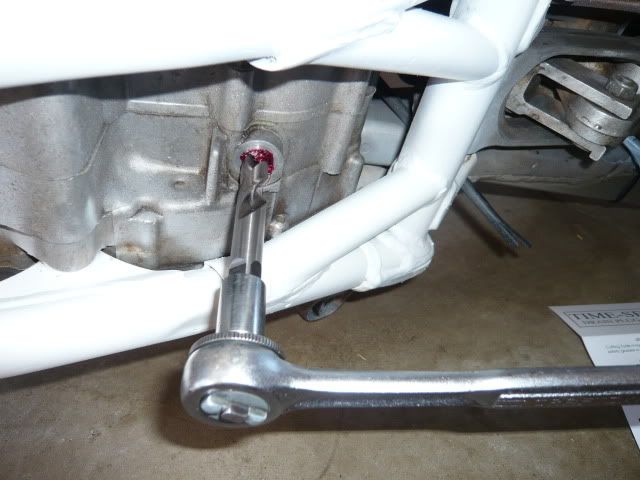

Step 2 - drill out drain hole oversize removing existing threads (pay special care to drill hole straight)

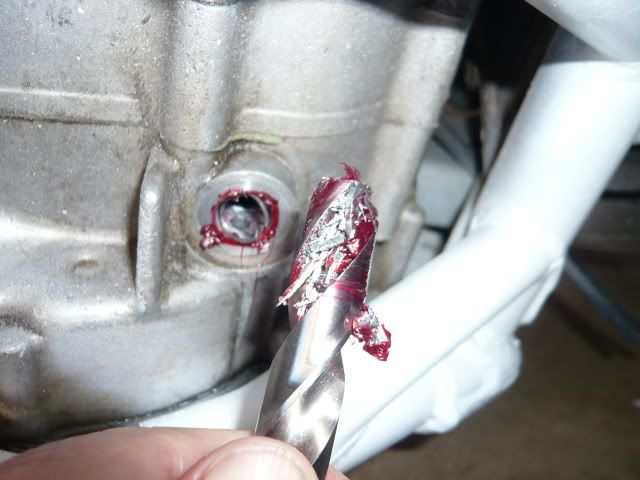

Step 3 - clean out metal chips from drain hole (I used Q-tips dipped in grease paying special care to not push any inside the gear box)
Kevin

User avatar
Booga-dune-poon
4th Gear Member
4th Gear Member
Posts: 153
Joined: Mon Dec 20, 2010 11:45 am
antispam: NO
Please enter the middle number: 7

Re: Stripped Threads - Drain Plug - Repair

Post by Booga-dune-poon » Sat Jan 29, 2011 11:28 pm

Step 4 - Use counterboring tool to create a step in the hole




Step 5 - Use tap guide and tap (pay special care to keep this straight)
Kevin

User avatar
Booga-dune-poon
4th Gear Member
4th Gear Member
Posts: 153
Joined: Mon Dec 20, 2010 11:45 am
antispam: NO
Please enter the middle number: 7

Re: Stripped Threads - Drain Plug - Repair

Post by Booga-dune-poon » Sat Jan 29, 2011 11:52 pm

Step 6 - remove tap and clean out threads with Q-tips with grease, then brake cleaner


Step 7 - install Timesert metal insert by hand

Step 8 - using the installation tool, drive the insert down seating it in the counterbore step (at first you'll feel the threads tightening and then the install tool will move freely. This is feedback that the steel threads have locked the insert into the aluminum case).

Step 9 - remove the installation tool and admire the steel threads that will no longer be vulnerable to stripping again.

Step 10 - install drain plug with washer and torque to manufacturers specifications.

Bottom line - it took about 1 hour to make this repair including stopping to take the pictures. The repair kit in my case was a metric M12 x 1.50 costing $93.00 over the internet. I still have 4 more inserts that came with the kit so I suppose I could fix the aluminum oil pans in my motorhome, automobiles, quad or other motorcycles if they should ever need a fix. If you can change a light bulb or the flapper in a toilet tank, then you can make this repair too.
Kevin
